Step-by-Step Guide: Building a Blockchain-Based IoT Weather Oracle on Chromia with Arduino

Introduction Link to heading

Integrating IoT with blockchain technology enhances data security, transparency, and reliability—crucial for IoT applications. Blockchain’s tamper-proof ledger and ability to timestamp data make it ideal for securely managing IoT information.

In this guide, we’ll build a blockchain-based IoT weather oracle using a thermistor sensor, Arduino, and Johnny-Five.js, storing real-time data on Chromia, a Layer-1 relational blockchain platform.

Project Overview Link to heading

We’ll create a weather data oracle using:

A thermistor sensor to measure temperature
An Arduino UNO to read sensor data
Johnny-Five.js to communicate between Arduino and our application
Chromia blockchain to securely store and timestamp the data

The final code for this project is available on GitHub.

Why Chromia and Node.js? Link to heading

Chromia suits this project because:

Simplicity and Speed: Its SQL-based architecture allows for rapid prototyping, enabling us to build this weather oracle in under two hours.
Customizable Fee Structures: Tailored to meet project-specific needs.
Efficient Data Handling: Chromia ensures that once data is written, reading it is free and unlimited.
Developer-Friendly Tools: Simplifies development with tools like Postchain client

We’re using Node.js and Johnny-Five.js to streamline development by coding everything in Typescript/JavaScript.

Prerequisites Link to heading

Hardware Link to heading

Thermistor
10k Ohm Resistor
Jumper wires
Breadboard
Arduino UNO R4 Wifi (or any board that Johnny-Five supported)

Software Link to heading

Node.js and NPM
Arduino IDE
PostgreSQL
Chromia CLI

Setup Link to heading

Step-by-Step Guide Link to heading

1. Setting up Chromia Link to heading

a. Initialize the project:

chr create-rell-dapp iot
cd iot

b. Edit src/main.rell: https://github.com/superoo7/chromia-iot-demo/blob/main/src/main.rell

Let me explain the code

module;

entity temperature {
    address: byte_array;
    temperature: decimal;
    created_at: integer = op_context.last_block_time;
}

This code defines a temperature entity in the Chromia blockchain. It has three fields:

address: Stores the address of the IoT device (in this case, our Arduino)
temperature: Stores the temperature reading
created_at: Automatically stores the timestamp of when the data was added to the blockchain

operation add_temperature(temperature: decimal) {
    val addr = op_context.get_signers()[0];
    create temperature (
        address = addr,
        temperature,
    );
}

This operation allows adding new temperature readings to the blockchain:

It takes a temperature parameter
op_context.get_signers()[0] gets the address of the account sending the transaction
create temperature (...) creates a new temperature entry in the blockchain

query get_temperatures(addr: byte_array) {
    return temperature @* {
        .address == addr
    } (
        .address,
        .temperature,
        .created_at,
    );
}

This query function retrieves temperature data:

It takes an addr parameter to filter results by a specific IoT device
@* retrieves all matching records
It returns the address, temperature, and timestamp for each record

c. Deploy the code:

chr node start

d. Set up Chromia client:

npm init -y
npm i typescript ts-node postchain-client
mkdir board
touch board/chromia.ts

e. Edit board/chromia.ts: https://github.com/superoo7/chromia-iot-demo/blob/main/board/chromia.ts

Let me explain the code:

const signatureProvider = newSignatureProvider({
  privKey: "0101010101010101010101010101010101010101010101010101010101010101",
});

This creates a signature provider with a hardcoded private key. In a real application, you’d use a secure method to manage private keys.

export async function createLocalClient() {
  if (cachedClient) {
    return cachedClient;
  }
  const client = await createClient({
    nodeUrlPool: [localClient],
    blockchainIid: 0,
  });
  cachedClient = client;
  return client;
}

This function creates and caches a Chromia client:

It checks if a client already exists to avoid creating multiple connections
If not, it creates a new client connected to the local Chromia node

export async function addTemperature(temperature: number) {
  const client = await createLocalClient();
  await client.signAndSendUniqueTransaction(
    {
      name: "add_temperature",
      args: [String(temperature)],
    },
    signatureProvider
  );
}

This function adds a temperature reading to the blockchain:

It gets the Chromia client
It signs and sends a transaction to call the add_temperature operation we defined earlier

2. Setting up Arduino Link to heading

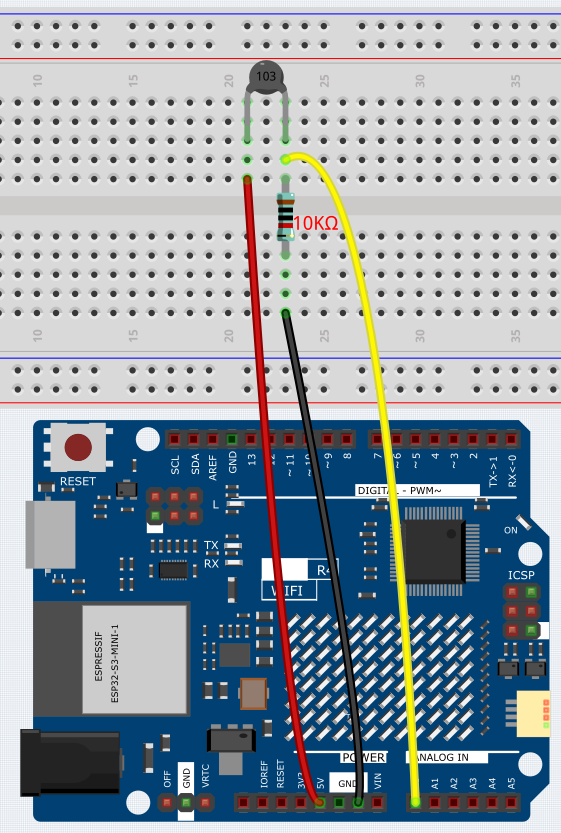

a. Connect the hardware:

Connect the thermistor to Analog Pin A0
Use a 10K Ohm resistor as a pull-down resistor

b. Install libraries

npm i --save johnny-five
npm i --save-dev @types/johnny-five

c. Create board/main.ts:

import five from "johnny-five";

const board = new five.Board();

const beta = 3950;
const resistance = 10;

board.on("ready", function () {
  const sensor = new five.Sensor({
    pin: "A0",
    freq: 1000,
    threshold: 10,
  });
  sensor.on("change", async function () {
    // @ts-ignore
    const analogValue = this.scaleTo(0, 1023);
    const { celsius } = analogValueToTemperature(analogValue);
    console.log(celsius);
  });
});

function analogValueToTemperature(val: number) {
  const celsius =
    beta /
      (Math.log(((1025.0 * resistance) / val - resistance) / resistance) +
        beta / 298.0) -
    273.0;
  const fahrenheit = 1.8 * celsius + 32.0;

  return {
    celsius,
    fahrenheit,
  };
}

Let me explain the code:

const board = new five.Board();

const beta = 3950;
const resistance = 10;

board.on("ready", function () {
  const sensor = new five.Sensor({
    pin: "A0",
    freq: 1000,
    threshold: 10,
  });
  // ... (sensor event handling)
});

This code sets up the Arduino board and sensor:

It creates a new Johnny-Five board object
beta and resistance are constants related to the thermistor calculations
When the board is ready, it sets up a sensor on analog pin A0, reading every 1000ms (1 second)

function analogValueToTemperature(val: number) {
  const celsius =
    beta /
      (Math.log(((1025.0 * resistance) / val - resistance) / resistance) +
        beta / 298.0) -
    273.0;
  const fahrenheit = 1.8 * celsius + 32.0;

  return {
    celsius,
    fahrenheit,
  };
}

This function converts the analog reading from the thermistor to temperature:

It uses the Steinhart-Hart equation to calculate temperature in Celsius
It also calculates the Fahrenheit equivalent

3. Integrating Arduino with Chromia Link to heading

Update board/main.ts:

import five from "johnny-five";
import { addTemperature } from "./chromia";

// ... (previous code)

board.on("ready", function () {
  const sensor = new five.Sensor({
    pin: "A0",
    freq: 1000,
    threshold: 10,
  });
  sensor.on("change", async function () {
    // @ts-ignore
    const analogValue = this.scaleTo(0, 1023);
    const { celsius } = analogValueToTemperature(analogValue);
    console.log(celsius);
    await addTemperature(celsius);
  });
});

// ... (rest of the code)

This code runs whenever the sensor detects a change:

It scales the analog reading to a 0-1023 range
It converts the analog value to temperature
It logs the temperature to the console
It calls addTemperature to store the reading on the Chromia blockchain

By understanding these code sections, you can see how the project combines hardware input (thermistor readings via Arduino), data processing (converting analog values to temperature), and blockchain integration (storing temperature data on Chromia). This creates a secure, decentralized IoT weather oracle.

Running the Project Link to heading

Start the Chromia node:

chr node start

Run the main script:

ts-node board/main.ts

You should now see temperature readings being logged and stored on the Chromia blockchain.

Conclusion Link to heading

You’ve successfully built a blockchain-based IoT weather oracle using Arduino and Chromia. This project demonstrates how to securely store and manage IoT data on a blockchain, providing a foundation for more complex IoT applications.
